E2 accessories

Kern Laser Eyepiece with Green Laser Diode Module

Kern Laser Eyepiece with Green Laser Diode Module. Can be attached to any Kern theodolite or instrument. Powered by a 3 Volt Kern 2xD battery case. All internally wired, screws onto electr. connector on telescope, with a maximum output of 5mW. Can be focused to a tiny dot and is ideal for pointing or painting a line on an object.


Kern Micrometer set and SF lenses

Parallel Plate Micrometer set with DKM2-A or Kern E2 counterweight etc. Overall range is ± 0.100" with direct reading to 0.001". Also available in metric 10 mm range, 0.1mm direct reading.

Short Focus Lens set with range of 34.2" to 66.8"


Kern Reflector Targets
Swisstek targets for Kern reflector prisms 5217 and 5220. Spring-loaded shaft with 16 mm OD and inner diameter of 1/2". Plug into the eyelets of Kern EDM reflectors for precise co-axial targeting, etc. Increased visibility with lime green self-adhesive decals.



power_supply
Kern Power Supplies for E1 or E2 electronic theodolites, Mekometer ME5000 etc.

Kern reflector P/N 115.604.5220

EDM prisms 5217 or 5220 for
DM502,DM503, DM504
electronic distance meters.





Wild-Heerbrugg Leica Instrument Accessories


Leica Diagonal Eyepiece Set

Leica Diagonal Eyepiece Set for all Wild and Leica theodolites and Total Stations using the twist-on Bayonet Lock feature
N3 and N2 plate vials

All kinds of Wild Leica and Kern Swiss highest precision tubular plate levels avialable for instruments like the T2, N3, DKM3-A, DKM2-A, GK23 etc.

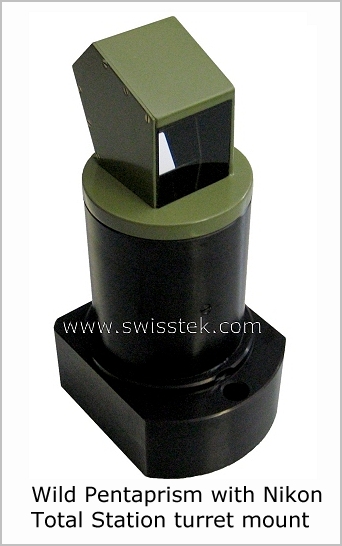

Wild Nikon Pentaturret
A wild pentaprism utilized on a Nikon total station objective turret mount.
Plumbing accuracy is 1:70,000

Wild T2 Roof Prism

Wild T2 Telescope Zenith Plummet.
Mounts to the center of the telescope
for auxiliary Zenith observation
with a plumbing accuracy of 1:5,000

Wild T3 5/8 x 11 Pillar Plate
T3 heavy duty Pillar Plate for concrete columns or observation pillars with three steel points, circular bubble and centering pin. Will accept any 5/8 x 11 instrument base, tribrach or adapter.
illuminators T3000 Autocollimating Lamp TM5100A Autocollimating Lamp TM5100A Autocollimating Lamp Custom-built red, blue, green or white color autocollimating LED lamp with dimmer

T3000 Battery T3000 Autocollimating Lamp TM5100A Autocollimating Lamp TM5100A Autocollimating Lamp


Wild Leica GEB 58 and
AL 51autocollimating
LED lamps.

Balanced T3000A 12V 2.5Ah battery available
with charger.

Laser pointer


Wild Leica Laser pointer to fit all
Wild Leica theodolites with bayonet-type eyepieces.

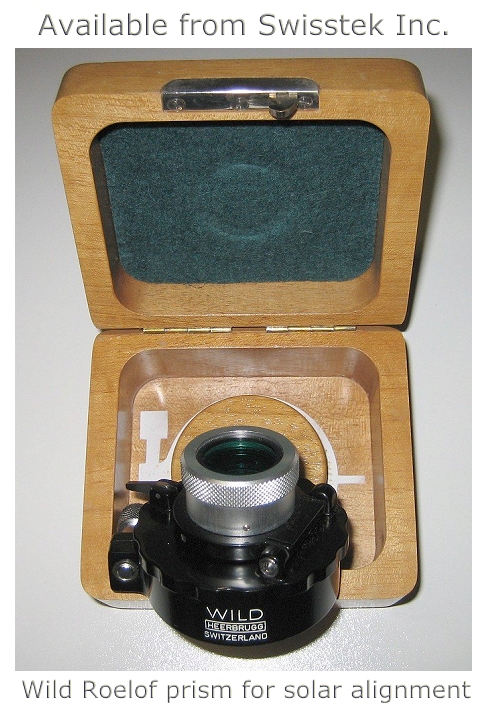

Wild Roelofs Solar Prism Info (pdf)


Wild Roelof prism
for sun
alignment. Can be used
with most theodolites with
the appropriate telescope
adapter.


Optical Tooling Accessories

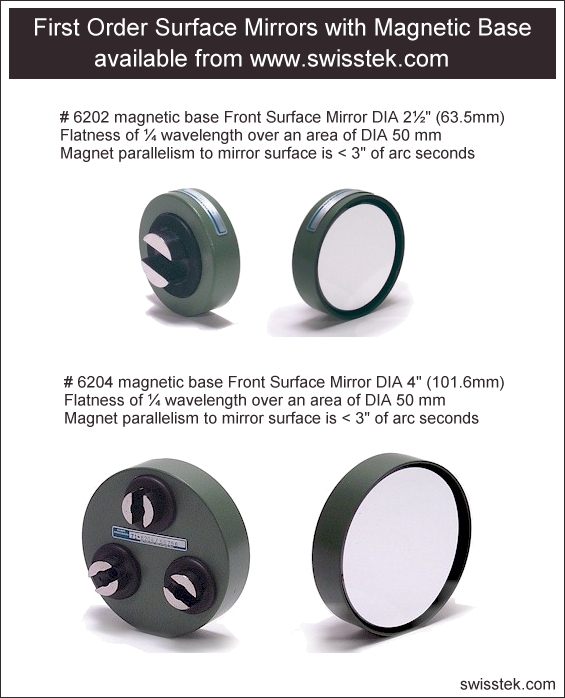

First Order Front Surface Mirrors with magnetic Base

First order Front Surface Mirrors
for autocolimating, with magnetic Base. Available in DIA 2½" or 4".

Click to view specifications.
T3000 Battery T3000 Autocollimating Lamp TM5100A Autocollimating Lamp TM5100A Autocollimating Lamp

T3000 Battery T3000 Autocollimating Lamp TM5100A Autocollimating Lamp TM5100A Autocollimating Lamp

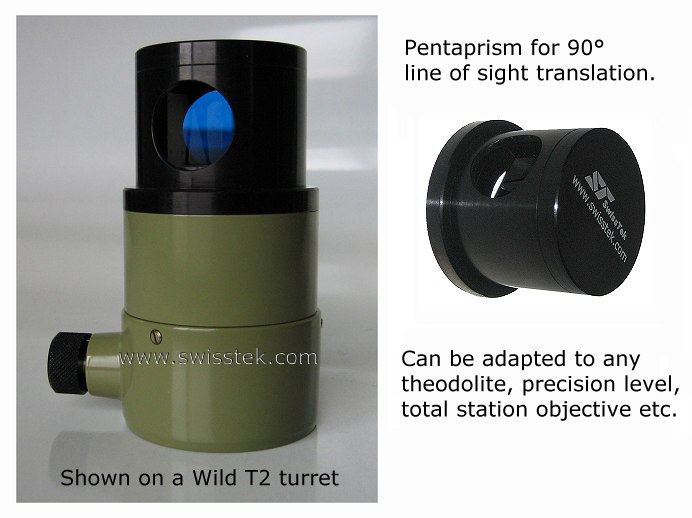

Pentaprism
These Swisstek Pentaprisms can be used on any instruments, theodolite
objectives
, total stations, precision
levels etc. to translate line of sight
by 90°. Threads to any given adapter
with 52 x 0.5 mm metric fine thread.
Dimensions 1.7" x 2.1", weighs 4 oz.
